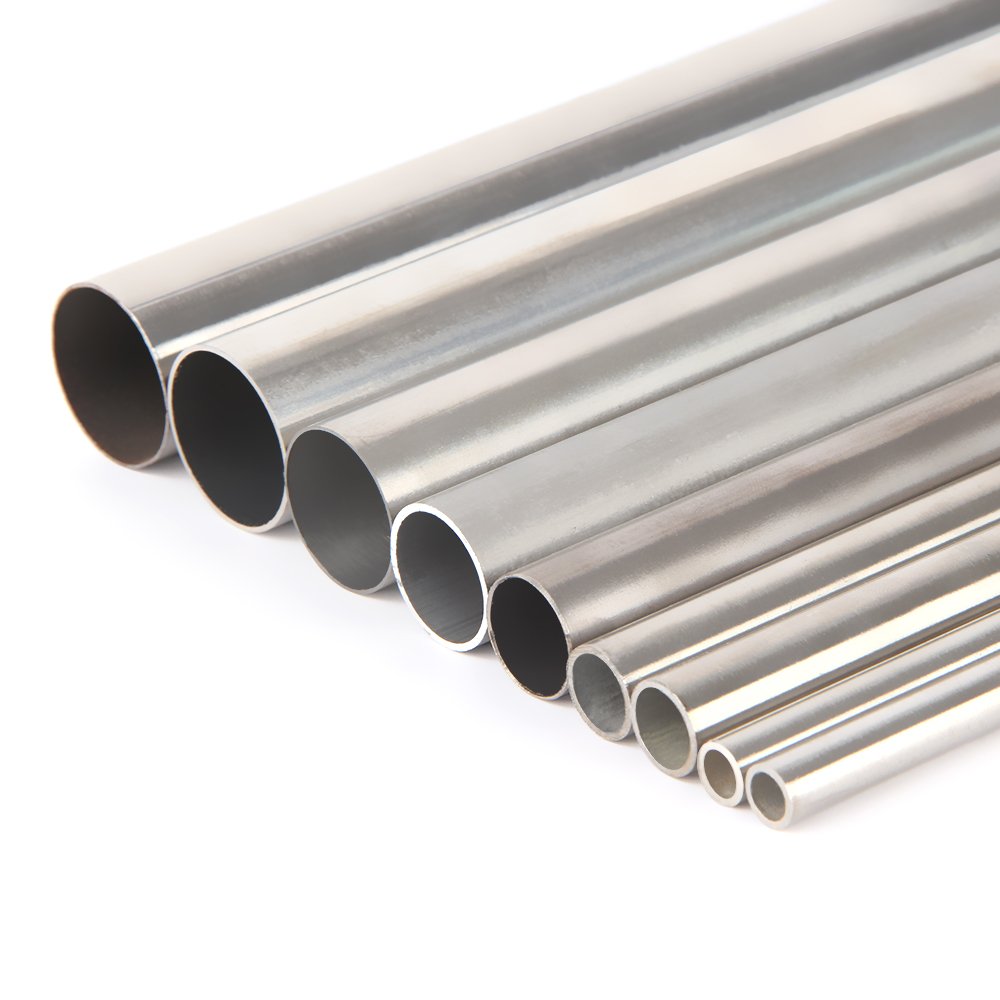

304 Stainless Steel tube is one of the most widely used materials in various industries due to its excellent corrosion resistance, durability, and versatility. Among its many forms, 304 stainless steel tubes are particularly popular for their wide range of applications and reliable performance. This article will explore the uses, mechanical properties, and chemical composition of 304 stainless steel tubes.
Applications of Stainless Steel 304 Tubes
Stainless steel 304 tubes are utilized in a variety of industries due to their exceptional properties. Some of the key applications include:
- Food and Beverage Industry:
Stainless steel 304 tubes are commonly used in the food and beverage industry for processing, transporting, and storing liquids and food products. Their corrosion resistance and ease of cleaning make them ideal for maintaining hygiene standards. - Chemical and Pharmaceutical Industry:
These tubes are used in the chemical and pharmaceutical sectors for transporting chemicals, gases, and liquids. Their resistance to corrosive substances ensures the integrity of the materials being transported. - Automotive Industry:
Stainless steel 304 tubes are used in exhaust systems, fuel lines, and other components due to their high-temperature resistance and durability. - Construction and Architecture:
In construction, these tubes are used for structural purposes, handrails, and decorative elements. Their aesthetic appeal and strength make them a preferred choice. - Oil and Gas Industry:
Stainless steel 304 tubes are used in pipelines and equipment for transporting oil and gas. Their resistance to harsh environments ensures long-term reliability. - Heat Exchangers and Boilers:
Due to their excellent thermal conductivity and resistance to oxidation, these tubes are widely used in heat exchangers and boilers.
Mechanical Properties of 304 Stainless Steel Tubes
Stainless steel 304 tubes exhibit a combination of mechanical properties that make them suitable for demanding applications. Key mechanical properties include:
- Tensile Strength: 515 MPa
- Yield Strength: 205 MPa
- Elongation at Break: 40%
- Hardness: 201 HB (Brinell Hardness)
- Density: 8.0 g/cm³
- Thermal Conductivity: 16.2 W/m·K
- Melting Point: 1400-1450°C (2552-2642°F)
These properties ensure that stainless steel 304 tubes can withstand high stress, pressure, and temperature variations, making them suitable for a wide range of industrial applications.
Chemical Composition of Stainless Steel 304
The excellent properties of stainless steel 304 are largely due to its chemical composition. The primary elements in its composition are:
- Chromium (Cr): 18-20%
Chromium is the key element that provides corrosion resistance by forming a passive oxide layer on the surface of the steel. - Nickel (Ni): 8-10.5%
Nickel enhances the ductility, toughness, and resistance to oxidation and corrosion. - Carbon (C): ≤ 0.08%
Low carbon content ensures good weldability and prevents carbide precipitation during welding. - Manganese (Mn): ≤ 2%
Manganese improves strength and workability. - Silicon (Si): ≤ 1%
Silicon enhances strength and resistance to oxidation. - Phosphorus (P): ≤ 0.045%
- Sulfur (S): ≤ 0.03%
These elements are kept at low levels to maintain the material’s integrity and performance. - Iron (Fe): Balance
Iron forms the base of the alloy, providing structural strength.
Conclusion
Stainless steel 304 tubes are a versatile and reliable material choice for a wide range of industries. Their excellent mechanical properties, combined with their resistance to corrosion and high temperatures, make them suitable for demanding applications. The balanced chemical composition of stainless steel 304 ensures durability, weldability, and long-term performance. Whether in the food industry, chemical processing, or construction, stainless steel 304 tubes continue to be a preferred solution for engineers and designers worldwide.
