Ian Industries offers a wide range of aluminum tent poles sizes and processing services
| Outer Diameter | 7mm, 7.9mm, 8.5mm, 9.0mm, 9.5mm, 11mm, 12mm,12.7mm, 13mm, 14mm, 15mm, 16mm, 19mm, 22mm or Customized |
|---|---|
| Length | Customized |
| Grade | 7001 Aluminum |
| Temper | T3-T9 |
| Surface Treatment | Anodizing, Powder Coating, Polishing |
| Color | Black, Red, Blue, Green, Gold, Purple or Customized |
| Processing Service | Pre-Bend, etc |
| Product Standard | ASTM, ASME, EN, JIS, DIN, GB/T, etc |

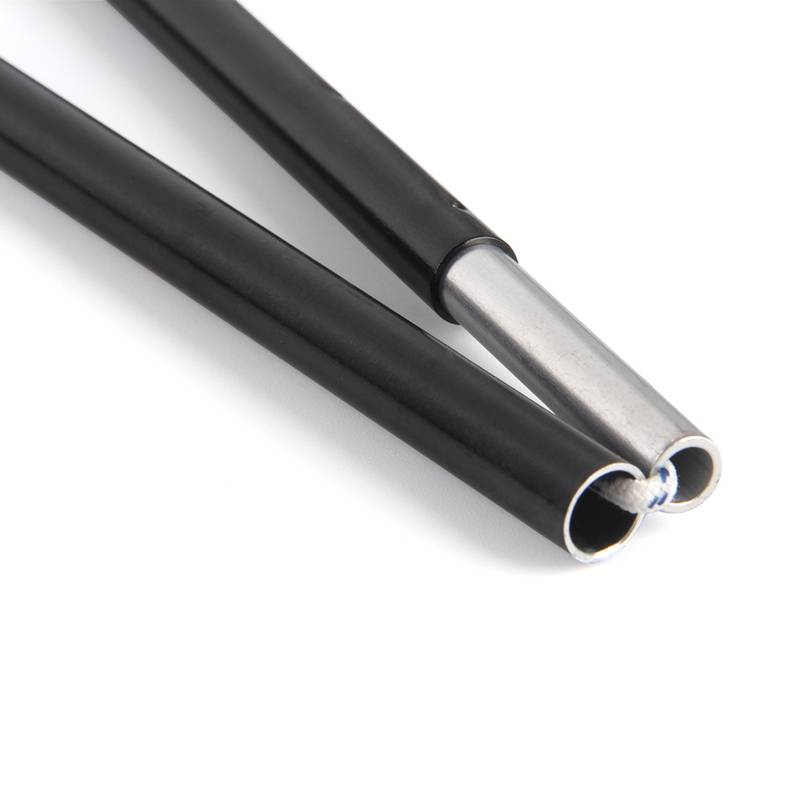

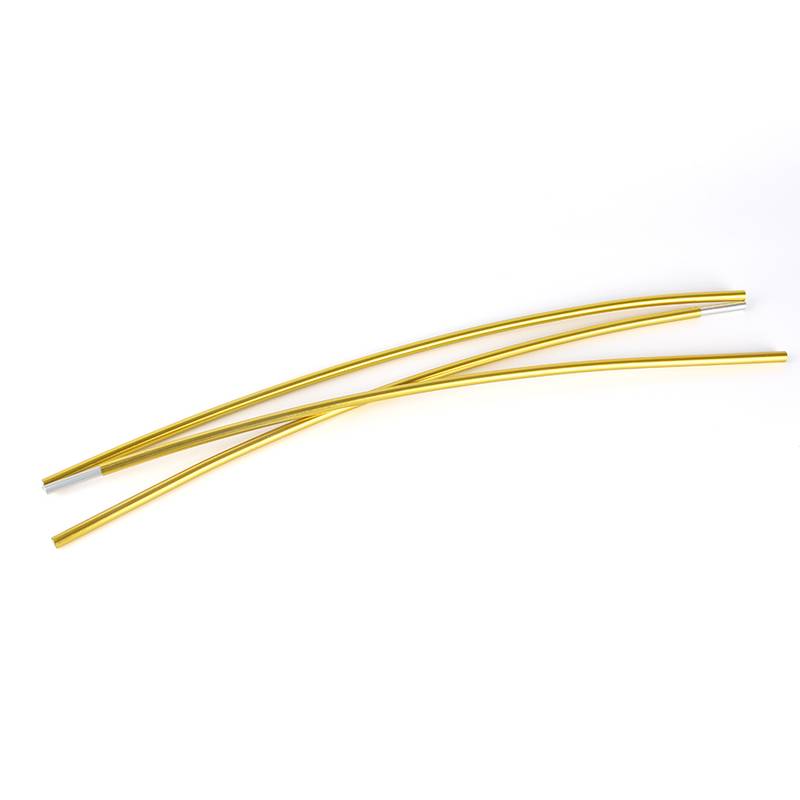

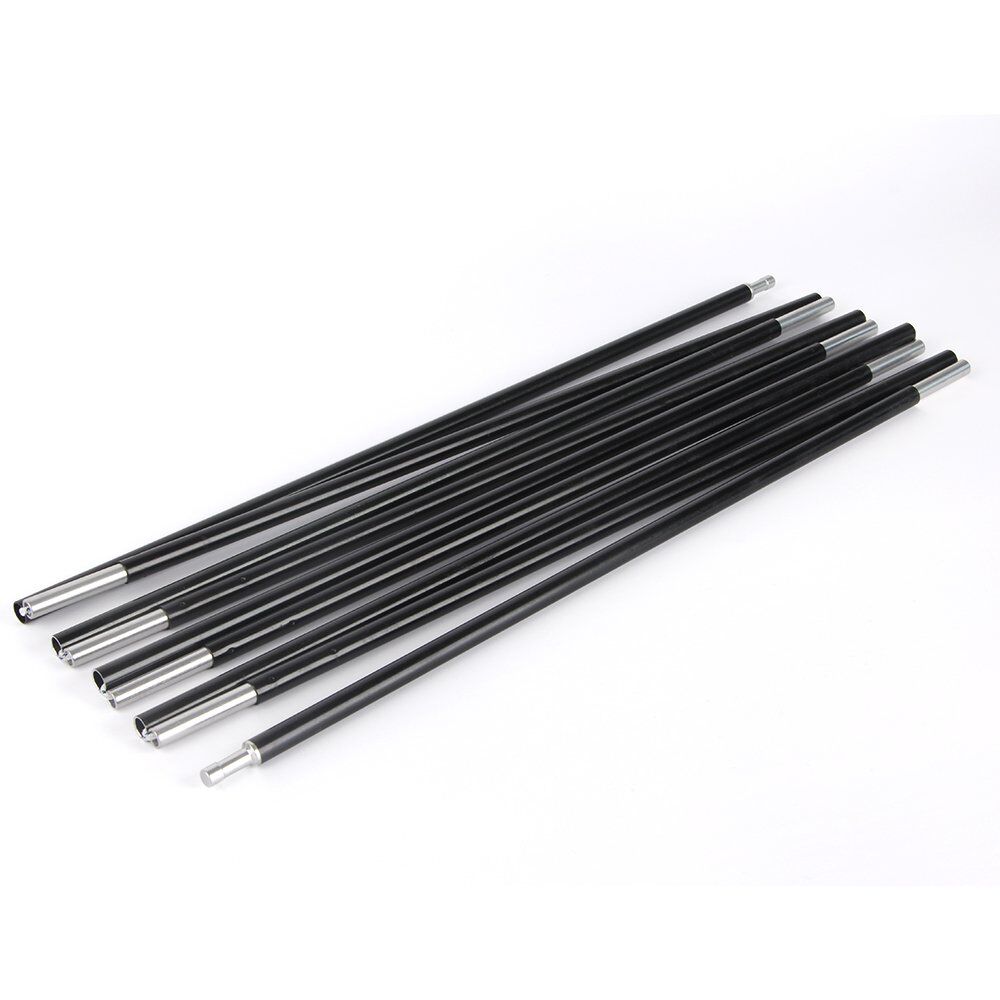

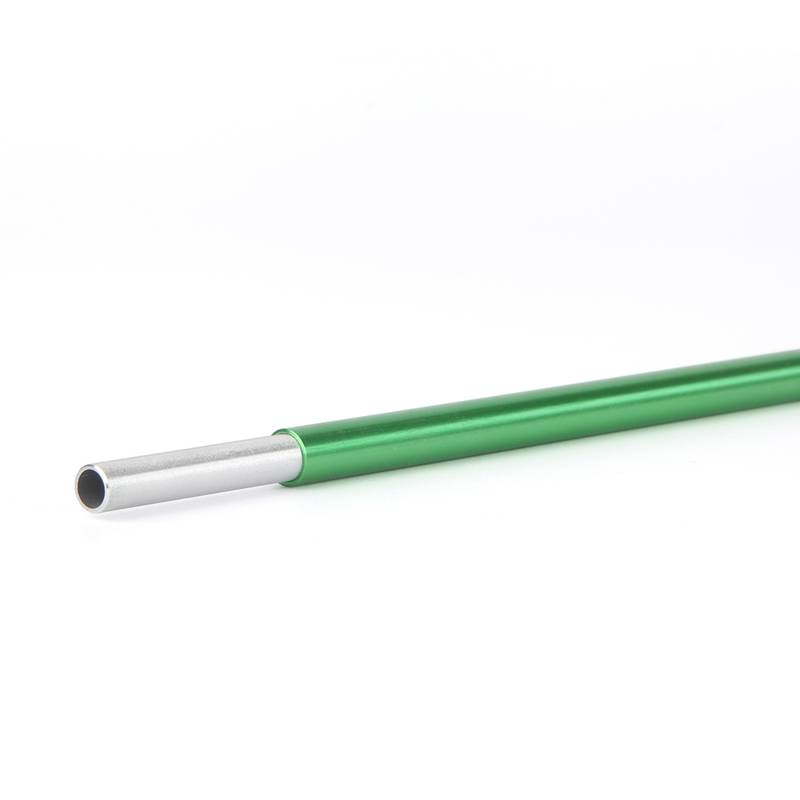

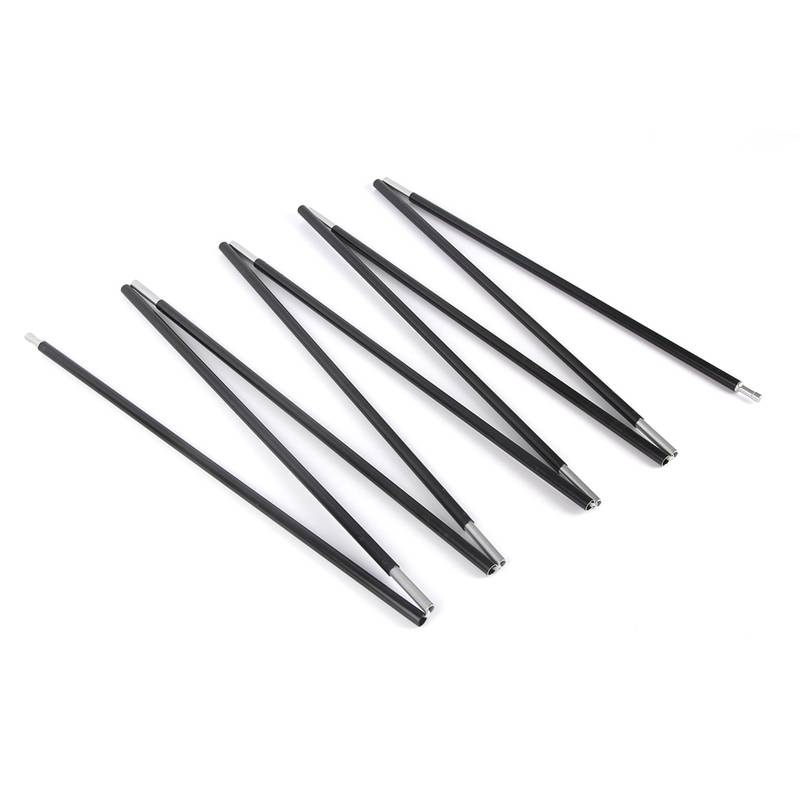

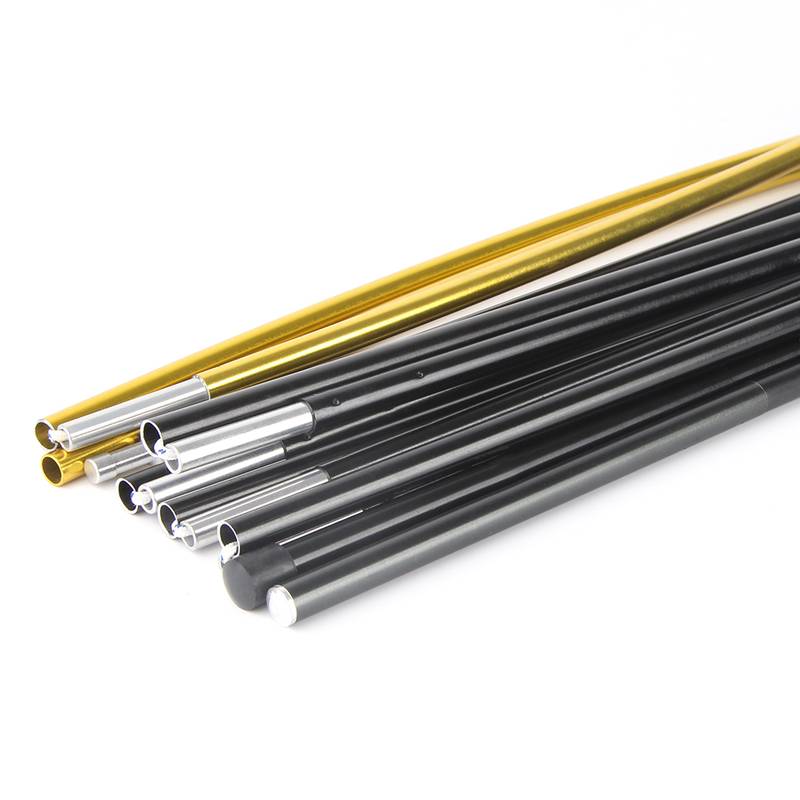

Tent pole material is aluminum 7001 T6. The main purpose of tent pole is to prop up the camping tent, 7001 has good elasticity, high strength not easy to broken, high temperature resistance It’s the best choice for tent!
| Aluminum Tent Pole Size List | ||||||||||||||||||
| Outer Diameter | 7mm | 7.9mm | 8.5mm | 9.5mm | 11mm | 11mm | 11mm | 12mm | 12.7mm | 13mm | 13mm | 14mm | 15mm | 16mm | 16mm | 19mm | 19mm | 22mm |
| Wall thickness | 0.7mm | 0.7mm | 0.7mm | 0.7mm | 0.8mm | 0.9mm | 1mm | 0.9mm | 0.9mm | 0.8mm | 1mm | 1mm | 1mm | 1mm | 1.2mm | 1mm | 1.2mm | 1mm |
| Chemical Composition | |||||||||
| Grade | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | AL |
| 7071 | 0.35 | 0.4 | 1.6-2.6 | 0.2 | 2.6-3.4 | 0.18-0.35 | 6.80-8.0 | 0.2 | Balance |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | Balance |
| Aluminum Tent Pole Mechanical Property | |||
| Grade | Tensile Strength (Mpa) | Yield strength (Mpa) | Elogation (%) |
| 7001 T6 | 648 | 576 | 10 |
| 7075 T5 | 560 | 495 | 7 |
China Professional Tubing Manufacturer. Specialized in Aluminum Tube/ Tent Pole, Stainless steel Tube/ Capillary Tube, Titanium Tube And Processing Services.
